Project Name: Land Rover Tonneau

Name: P Knechtel

Location: Southampton

Hi,
I thought there might be some interest in a recent project for my Landrover Defender 110 that I completed using materials from 1st Choice Metals. I bought the Defender last year with a canvas rear cover and although it looked very smart it was not the look that I wanted. I searched on-line but could only find one company that make an aluminium tonneau but this comes in at around £800 and for that price they don’t guarantee that it will be water-tight. S
So I decided to make my own and try and improve on the professionally made one using a combination of various aluminium sections from 1st Choice Metals and components from other suppliers that I found by searching on-line.

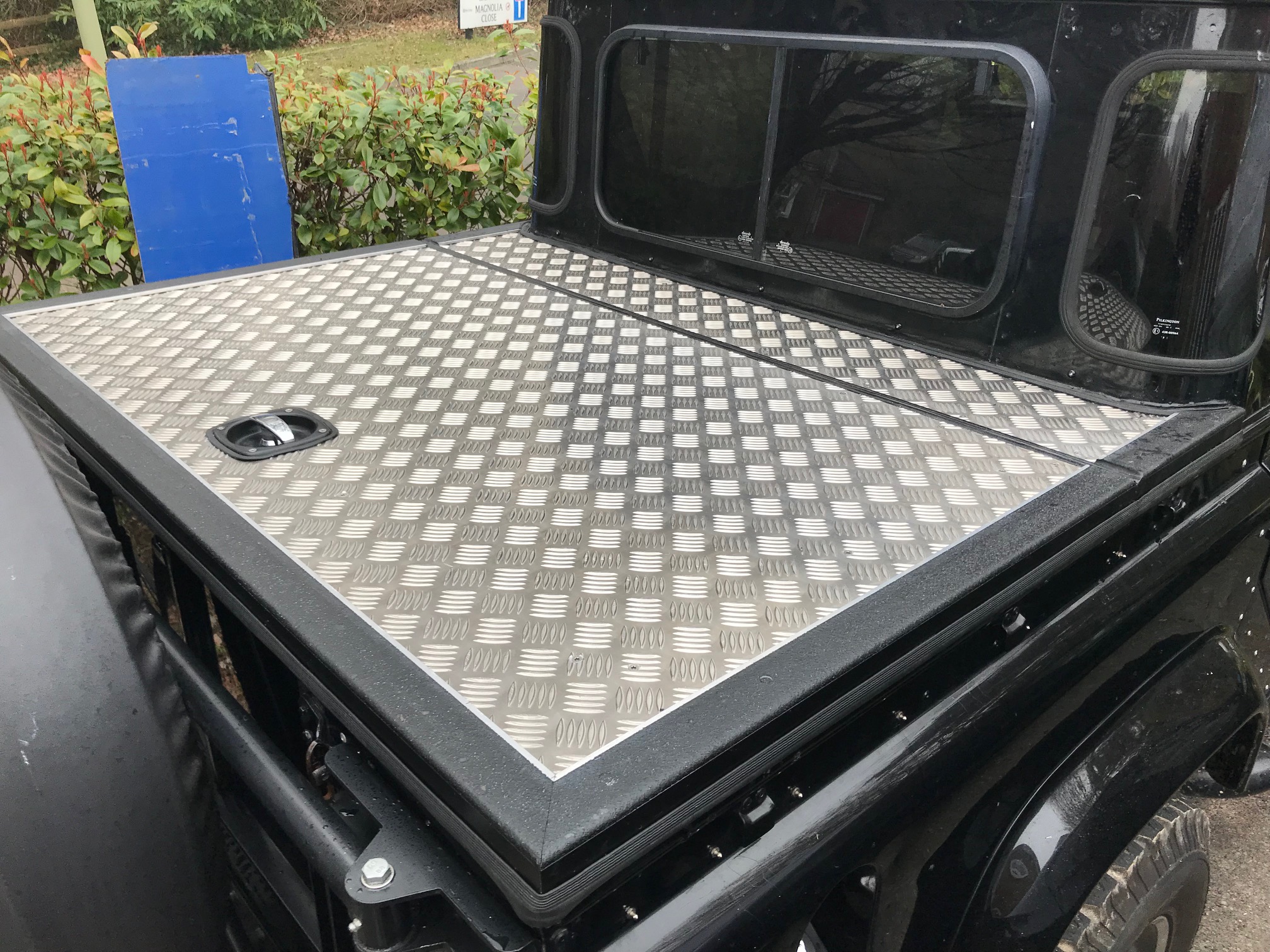

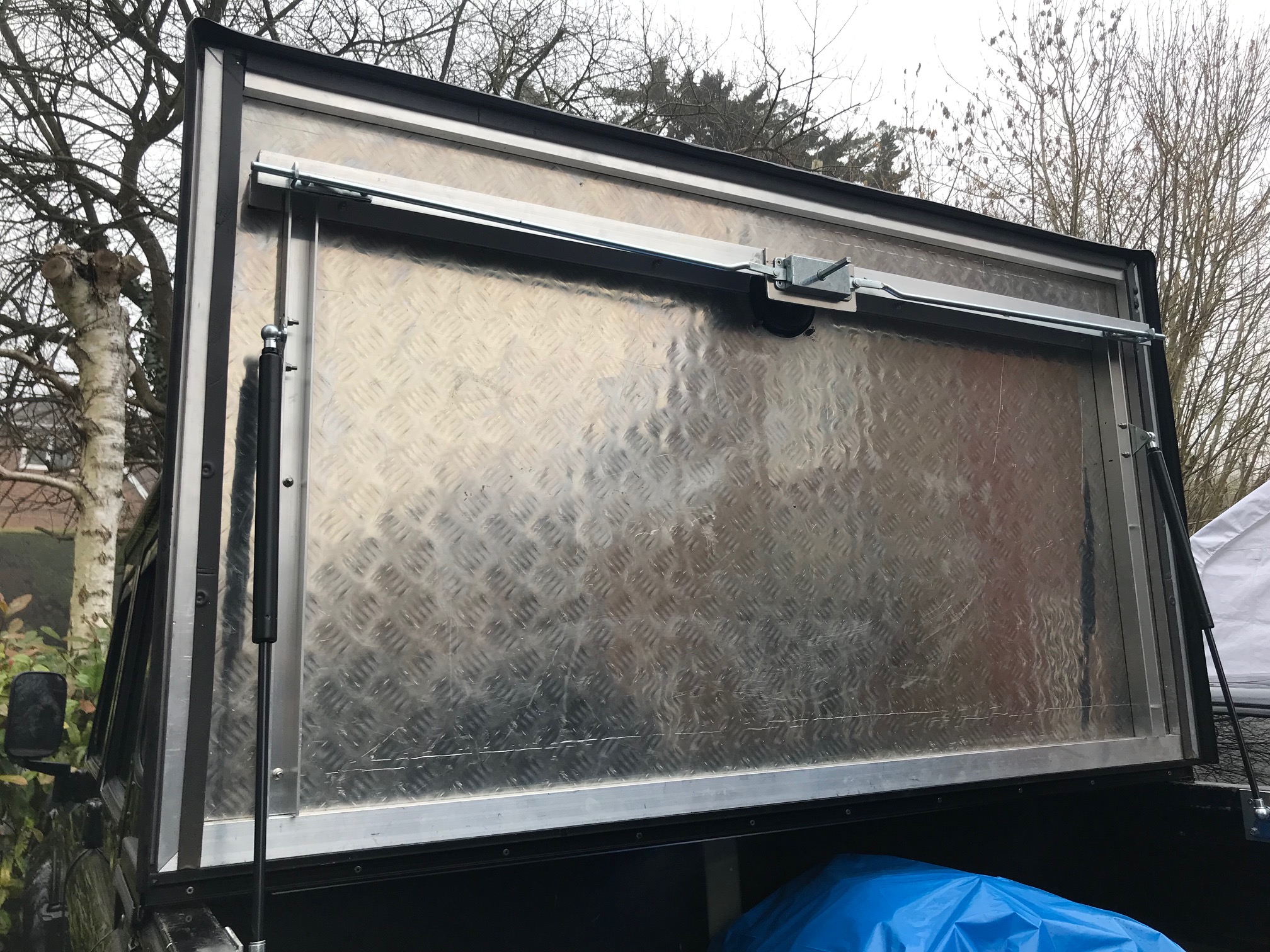

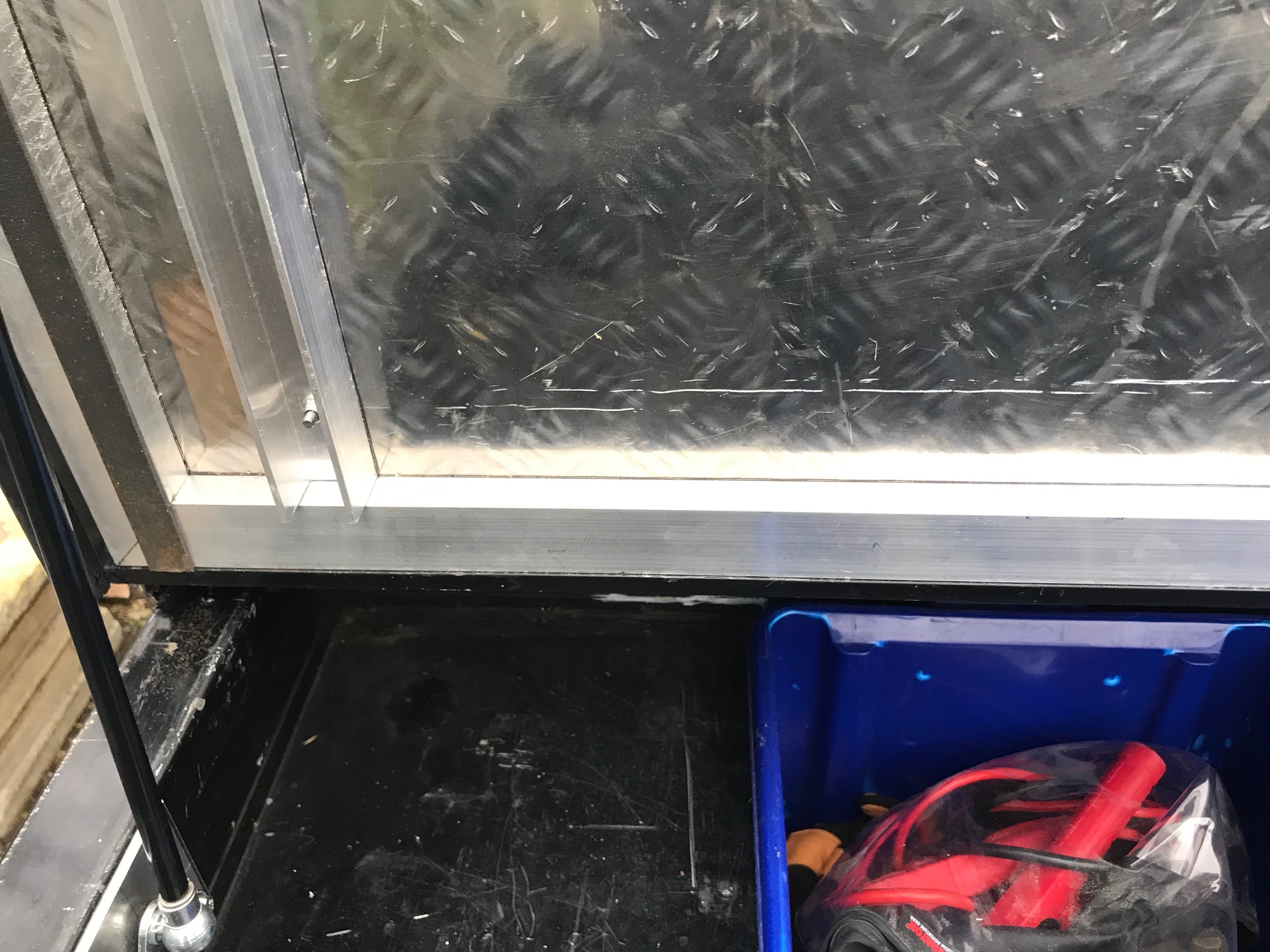

The results can be seen in the attached photos and So far I am very happy with the result. The deck is locked down using a chrome recessed ‘t’ handle and lifted to the Vertical with twin gas filled struts. All aluminium components are joined using either pop rivets or, where the heads are visible, stainless steel torx screws into captive rivnuts. All sections are separated by 0.5 mm thick rubber strips to prevent ‘rattle’ and aid water tightness.
The materials that were used from 1st Choice Metals are as follows:
Main deck – 3mm chequerplate.
Perimeter box section – 38.1mm x 19.05mm
Piston channel/ stiffeners – 31.75 x 31.75 x 3.18 mm

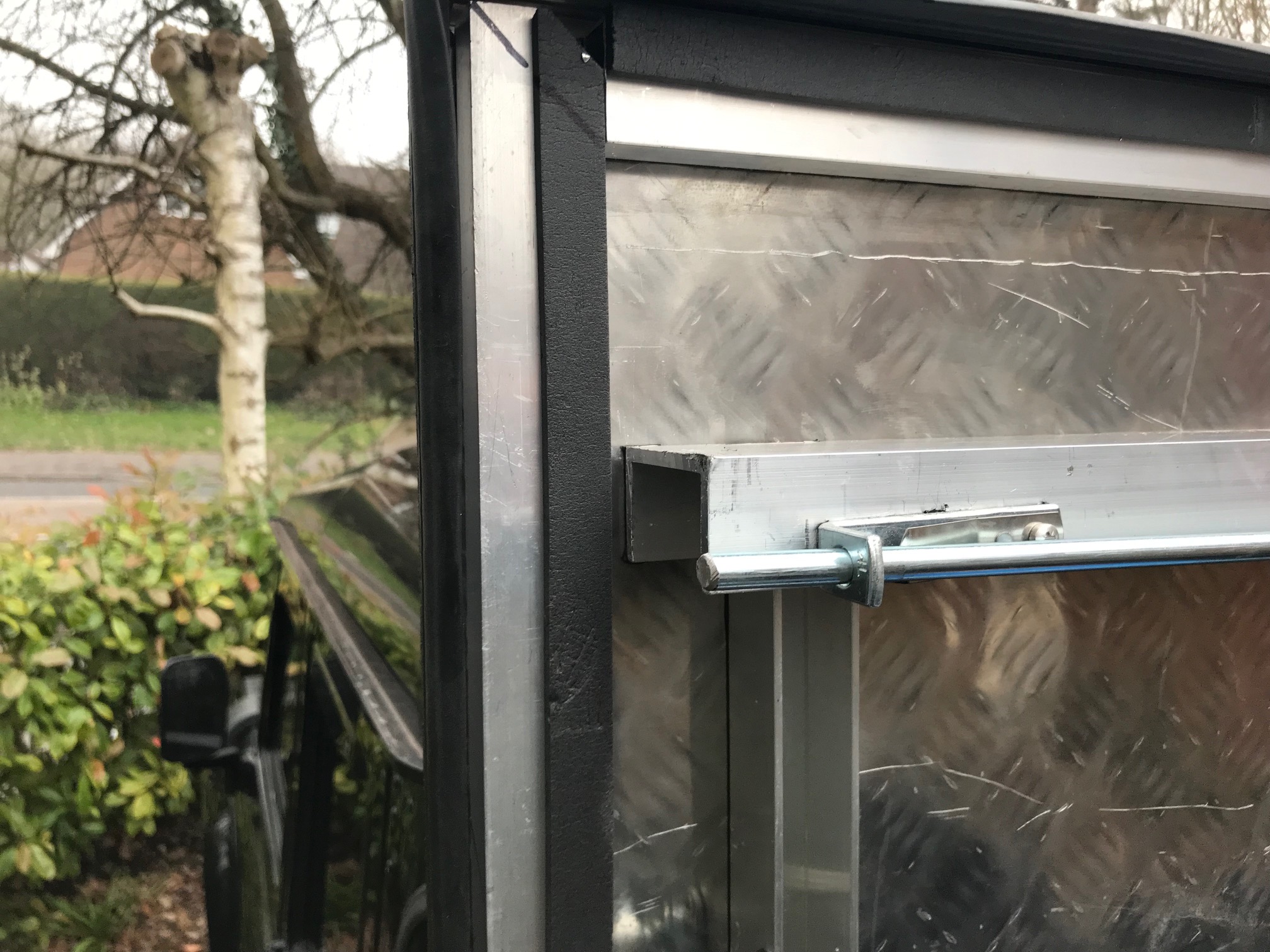

Lock channel/ rear stiffener – 63.5 x38.1 x 4.76 mm

If anyone is interested in the other components I would be delighted to provide source and price information. I made the whole thing for about half the cost of the professional item……..and mine is watertight!

I would like to thank 1st Choice Metals for providing good value materials with rapid delivery and I will be sure to re-visit them for my next project! (Which happens to be a built-in tool/equipment locker for inside the back of the Landrover.

Regards Phillip Knechtel

*******************************************************************************************************************

Project Name:       Aluminium Potting Bench

Creator:                 S. Gurney

Location:              Northamptonshire

Here are some photos of the potting bench that I made from the aluminium I bought from your website.

pottbench1_zpsc51133e1 pottbench_zpsba6317f6

I couldn’t find the right sized potting bench anywhere in the shops or online, so I decided to make my own.

It is 600mm wide x 530mm deep, 760mm high at the front and 1000mm at the back.

It is constructed from 1.5mm Aluminium Sheet, 3/4″ x 3/4″ Aluminium Angle and 1″ x 1″ x 16swg Aluminium Box Section, all of which 1st Choice Metals cut down to size for me with good accuracy.

I then finished the legs off with a couple of plastic end caps.

I am by no means an engineer but managed to put this together quickly and easily from the items ordered from 1st Choice Metals, and have ended up with a made to measure potting bench that has probably actually cost me less than if I had found one in a shop or garden centre!
